High-Precision 24 Positions 0.05/0.02 Class Meter Testing Equipment

Brand Name : GENY

Model Number : YC1893D

Certification : ISO, CE

Place of Origin : CHINA

Payment Terms : L/C,T/T,D/P

Supply Ability : 100/Year

Model NO. : YC1893D

Accuracy : 0.05 / 0.02

Standard Meter : SZ03A-K6 / SZ03A-K8 / Radian RD-33

Voltage supply : 3x220/380V±10%(or customized) 50/60Hz ±2Hz

Power of the current output : Max. 3x750VA

Contact Now

High-Precision 24 positions 0.05/0.02 Class Meter Testing Equipment


Specifications:


Technical spec.


Number of meter positions

24

Accuracy

0.05 / 0.02

Power Source

YCS-103-1200

Standard Meter

SZ03A-K6 / SZ03A-K8 / Radian RD-33

Scanning Head

YCG-S Series

Voltage


Test voltage output(Phase-Neutral)

3* (24V~288V)(or customized)

Power of the voltage output

Max. 3x500VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005% /h (integration time 150s)

Load regulation from 0~max. load

Better than 0.01%

Distortion factor

Better than 0.3% for linear resistance load

Harmonic

2nd~21st free programmable

Current


Test current output

3* (1mA - 100A)

Power of the current output

Max. 3x750VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005% /h (integration time 150s)

Load regulation from 0~max. load

Better than 0.01%

Distortion factor

Better than 0.3% for linear resistance load

Harmonic

2nd~21st free programmable

Phase angle


Range

0~360⁰

Resolution

0.01⁰

Setting accuracy

0.1⁰

Frequency


Range

45Hz~65Hz

Resolution

0.01Hz

Error display


Type of error display

Red LED

Resolution of error displays

8 digitals

Other


Voltage supply

3x220/380V±10%(or customized)

50/60Hz ±2Hz

Ambient temperature

-10°C~+40°C

Relative humidity

35%~85%



Description:


1) The meter test system is capable of measuring mechanical and electronic meters, as well as electronic meters, through automatic, semi-automatic or manual operation.

2)Meters under testing: The following configurations are available: 3P4W, 3P3W and 1P2W.

Thirdly, the testing mode encompasses the following: active power, reactive power and cross-connected reactive power.

Fourthly, the meters should be measured in parallel, with the same specifications but different meter constants.

5) The automatic positioning rotor mark of the disc of the mechanical meter is more efficient.

6) Initiate the test and the creep test.

Option 7: Neutral current test (optional)

8) The installation of ICT in each meter position is required for the testing of three-phase meters with closed links between the current and voltage measuring circuits (I-P links). This step is optional.

9) The product incorporates a range of safety features, including overload, short-voltage and open-current circuit protection.

10) The synchronised movement of the scanning heads streamlines the control process.

11) This aluminium alloy is both lightweight and durable, while also being resistant to corrosion.

12) The testing software, which is compatible with Windows 2000, XP, 7, 8 and 10, includes a range of functional modules for various modern energy meters. These modules allow for the execution of error tests, harmonic tests, demand tests and influence tests, among others.

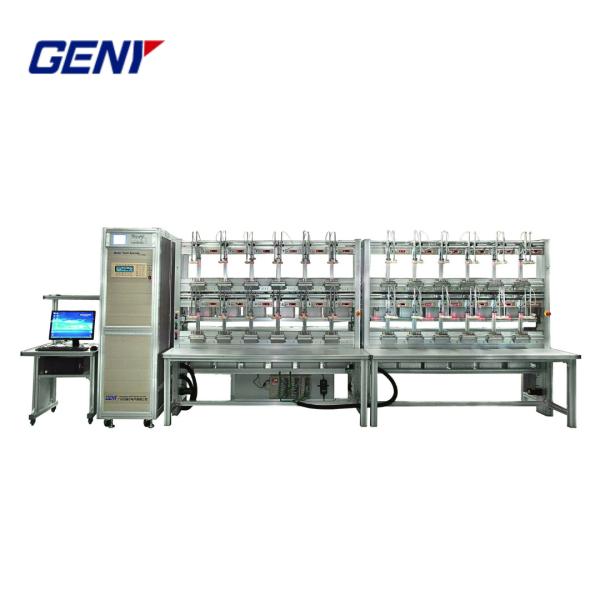

High-Precision 24 Positions 0.05/0.02 Class Meter Testing Equipment

High-Precision 24 Positions 0.05/0.02 Class Meter Testing Equipment



If you would like to explore further details, please navigate to the following URL:http://www.genymetertestequipment.com/
