Advanced Stationary Meter Test Equipment For Electric Energy Meters With 0.02% Accuracy YC1893D-24-0.02-FX

Name: Advanced Stationary Meter Test Equipment For Electric Energy Meters With 002 Accuracy YC1893D24002FX
Brand: GENY
Price: 1 USD

Brand Name : GENY

Model Number : YC1893D-24-0.02-FX

Certification : ISO, CE

Place of Origin : China

MOQ : 1

Price : negotiate rates

Payment Terms : T/T, L/C, D/P, T/T

Supply Ability : 5 sets / 1 months

Delivery Time : 6~8weeks

Packaging Details : Plywood cases

Accuracy Class : 0.01% / 0.02%

Number Of Meter Positions : 3 / 6

Power Source : YCS-103-X

Structure : All-in-one

Usage : Energy Meter Calibration, Lab Research

Power of the voltage output : 3x200VA

Stability : Better than 0.002% /h

Contact Now

Advanced Stationary Meter Test Equipment for Electric Energy Meters with 0.02% Accuracy YC1893D-24-0.02-FX

Description

GENY’s meter test systems adopt the most advanced electronic measurement technique, and modular concept, combining the different reference standards and power amplifiers to satisfy customers’ requirements in electric energy meter manufacturers, electric power utilities, metrology laboratories, measuring and quality examining departments, and factories or enterprises.

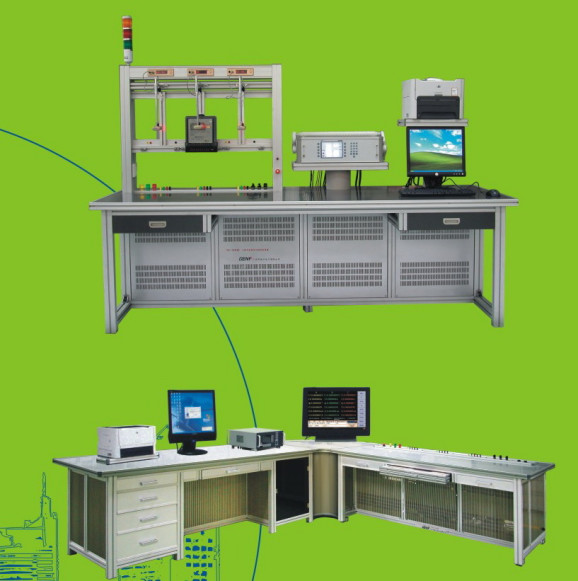

The MTS is a full-automatic test system for calibration and verification of three-phase electric energy meters, which composes of:

Three-phase static power source
Three-phase reference standard meter
Meter automatic suspension test rack
Other necessary parts
PC and software controlling the whole system

The YC1893D series meter test systems is fully compliant with the IEC 60736 standard and is suitable for testing meters according to the following standards:

IEC 62052-11 and IEC 62053-11, -21, -22, -23, -24
IEC 62056
EN 50470-1, EN 50470-2, EN-50470-3
IEC 61010

Features and functions

The MTS (Meter Test System) is equipped with essential features for precise electricity meter testing:

RS232 Communication: Enables testing of smart meters via a parallel communication port.
Rack Calibration: Provides terminals for bench verification and calibration of three-phase energy meters, including those from Landis+Gyr.
IEC Compliance: Conducts accuracy tests in line with IEC standards.
Meter Tests: Includes no-load, starting current, and error repeatability tests.
Additional Features: Offers clock frequency accuracy, maximum demand, and influence quantity tests, as well as harmonic and sub-harmonic assessments.
Custom Features: Includes automated wiring, automatic short circuit function, a custom quick connection device (QCD) for Landis+Gyr meters, and PC software for ESAM testing.

Technical Data

1. Power Supply

Voltage	3 × 220V±10%
Frequency	50 / 60Hz ± 2Hz
Power capacity	>6k VA
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

2. Power Source

Voltage output
Test voltage output (Phase-Neutral)	3 × (24V – 300V)
Power of the voltage output	3 × 1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Current output
Test current output	3 × (0.3mA – 20A)
Power of the current output	3 × 1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz
